Intel Graphics Cards: A Comprehensive Guide

Intel is one of the world's leading technology companies, best known for its processors and chipsets. But did you know that Intel also makes graphics cards? In this article, we will explore the different types of Intel graphics cards, from the integrated ones that come with your CPU, to the discrete ones that you can buy separately. We will also look at some of the notable models and features of each series, and how they compare to the competition.

Intel Graphics: A Brief History

Intel's first graphics product was the Intel 82720 Graphics Display Controller, released in 1982. It was a licensed version of the NEC μPD7220, and it could display up to 16 colors at a resolution of 640x400 pixels. Since then, Intel has developed several generations of graphics solutions, both integrated and discrete, for various markets and applications.

Some of the milestones in Intel's graphics history are:

• The i740, launched in 1998, was Intel's first stand-alone graphics card. It supported DirectX 5.0 and OpenGL 1.1 and had 8 MB of memory.
• The Extreme Graphics series, introduced in 2002, was Intel's second generation of integrated graphics. It supported DirectX 6.0 and OpenGL 1.3 and had up to 64 MB of shared memory.
• The Graphics Media Accelerator (GMA) series, launched in 2004, was Intel's third generation of integrated graphics. It supported DirectX 9.0 and OpenGL 1.4 and had up to 256 MB of shared memory. Some of the models in this series were the GMA 900, GMA 950, GMA 3100, and GMA 3150.
• The HD Graphics series, released in 2010, was Intel's fourth generation of integrated graphics. It supported DirectX 10.1 and OpenGL 3.0 and had up to 1.7 GB of shared memory. Some of the models in this series were HD Graphics, HD Graphics 2000, HD Graphics 3000, and HD Graphics 4000.
• The Iris Graphics series, which debuted in 2013, was Intel's fifth generation of integrated graphics. It supported DirectX 11.1 and OpenGL 4.3 and had up to 2 GB of dedicated memory. Some of the models in this series were the Iris Graphics 5100, Iris Pro Graphics 5200, Iris Graphics 6100, and Iris Pro Graphics 6200.
• The UHD Graphics series, introduced in 2017, was Intel's sixth generation of integrated graphics. It supported DirectX 12 and OpenGL 4.5 and had up to 64 GB of shared memory. Some of the models in this series were the UHD Graphics 600, UHD Graphics 620, UHD Graphics 630, and UHD Graphics 750.
• The Iris Xe series, launched in 2020, was Intel's seventh generation of integrated graphics. It supported DirectX 12.1 and OpenGL 4.6 and had up to 16 GB of dedicated memory. Some of the models in this series were the Iris Xe Graphics G7, Iris Xe MAX Graphics, and Iris Xe Graphics G4.
• The Arc series, announced in 2021, is Intel's first generation of discrete graphics cards. It will support DirectX 12 Ultimate and Vulkan 1.2 and will have up to 16 GB of GDDR6 memory. Some of the models in this series will be the Arc A310, Arc A380, Arc A750, and Arc A770.

Intel HD Series

The Intel HD series is the most common type of Intel-integrated graphics. It is usually found in mainstream laptops and desktops, and it offers decent performance for basic tasks like web browsing, video streaming, and office work. It can also handle some light gaming but don't expect to run the latest AAA titles at high settings.

The Intel HD series has several models, each with different specifications and capabilities. The higher the number, the better the performance. For example, the HD Graphics 4000 is faster than the HD Graphics 3000, and the HD Graphics 630 is faster than the HD Graphics 530. The HD Graphics 4000 was the first model to support DirectX 11, while the HD Graphics 530 was the first model to support DirectX 12.

Some of the notable models in the Intel HD series are:

• The HD Graphics 4000, was released in 2012 and featured in the third-generation Core processors (Ivy Bridge). It had 16 execution units (EUs), a base frequency of 650 MHz, and a boost frequency of up to 1350 MHz. It could support up to three displays and had a maximum resolution of 4096x2304 pixels.
• The HD Graphics 530, was released in 2015 and featured in the sixth-generation Core processors (Skylake). It had 24 EUs, a base frequency of 350 MHz, and a boost frequency of up to 1150 MHz. It could support up to three displays and had a maximum resolution of 4096x2304 pixels.
• The HD Graphics 630, was released in 2017 and featured in the seventh-generation Core processors (Kaby Lake). It had 24 EUs, a base frequency of 300 MHz, and a boost frequency of up to 1150 MHz. It could support up to three displays and had a maximum resolution of 4096x2304 pixels.

Intel UHD Series

The Intel UHD series is the successor of the Intel HD series, and it is also a type of Intel-integrated graphics. It is usually found in newer laptops and desktops, and it offers improved performance and efficiency for everyday tasks and gaming. It also supports some advanced features like HDR, 4K, and 10-bit color.

The Intel UHD series has several models, each with different specifications and capabilities. The higher the number, the better the performance. For example, the UHD Graphics 620 is faster than the UHD Graphics 600, and the UHD Graphics 750 is faster than the UHD Graphics 630. The UHD Graphics 600 was the first model to support OpenGL 4.5, while the UHD Graphics 750 was the first model to support HDMI 2.0b.

Some of the notable models in the Intel UHD series are:

• The UHD Graphics 620, was released in 2017 and featured in the eighth-generation Core processors (Kaby Lake Refresh). It had 24 EUs, a base frequency of 300 MHz, and a boost frequency of up to 1150 MHz. It could support up to three displays and had a maximum resolution of 4096x2304 pixels.
• The UHD Graphics 630, was released in 2017 and featured in the eighth-generation Core processors (Coffee Lake). It had 24 EUs, a base frequency of 300 MHz, and a boost frequency of up to 1200 MHz. It could support up to three displays and had a maximum resolution of 4096x2304 pixels.
• The UHD Graphics 750, was released in 2021 and featured in the eleventh-generation Core processors (Rocket Lake). It had 32 EUs, a base frequency of 350 MHz, and a boost frequency of up to 1300 MHz. It could support up to four displays and had a maximum resolution of 5120x3200 pixels.

You may also be interested in:

• Intel unveils 14th Gen HX (High performance) Desktop CPUs
• What are Graphics Cards and Why your PC needs one?
• Nvidia Vs AMD: Which GPU brand is better?
• Best Graphics Cards For Every Budget And Need
• Should You Buy An Extended Graphics Card For Your Laptop?

Intel Iris Xe Series

The Intel Iris Xe series is the latest and most powerful type of Intel integrated graphics. It is usually found in premium laptops and desktops, and it offers high performance and efficiency for demanding tasks and gaming. It also supports some cutting-edge features like ray tracing, variable rate shading, and adaptive sync.

The Intel Iris Xe series has several models, each with different specifications and capabilities. The higher the number, the better the performance. For example, the Iris Xe Graphics G7 is faster than the Iris Xe Graphics G4, and the Iris Xe MAX Graphics is faster than the Iris Xe Graphics G7. The Iris Xe Graphics G4 was the first model to support DirectX 12.1, while the Iris Xe MAX Graphics was the first model to support PCIe 4.0.

Some of the notable models in the Intel Iris Xe series are:

• The Iris Xe Graphics G4, which was released in 2020 and featured in the eleventh-generation Core processors (Tiger Lake). It had 48 EUs, a base frequency of 400 MHz, and a boost frequency of up to 1300 MHz. It could support up to four displays and had a maximum resolution of 5120x3200 pixels.
• The Iris Xe Graphics G7, which was released in 2020 and featured in the eleventh-generation Core processors (Tiger Lake). It had 80 or 96 EUs, a base frequency of 400 MHz, and a boost frequency of up to 1350 MHz. It could support up to four displays and had a maximum resolution of 5120x3200 pixels.
• The Iris Xe MAX Graphics, which was released in 2020 and was Intel's first discrete
• graphics card in over two decades. It had 96 EUs, a base frequency of 1650 MHz, and a boost frequency of up to 1750 MHz. It could support up to four displays and had a maximum resolution of 5120x3200 pixels. It also had 4 GB of dedicated LPDDR4X memory and a bandwidth of 68 GB/s. It used the PCIe 4.0 interface and had a TDP of 25 W.

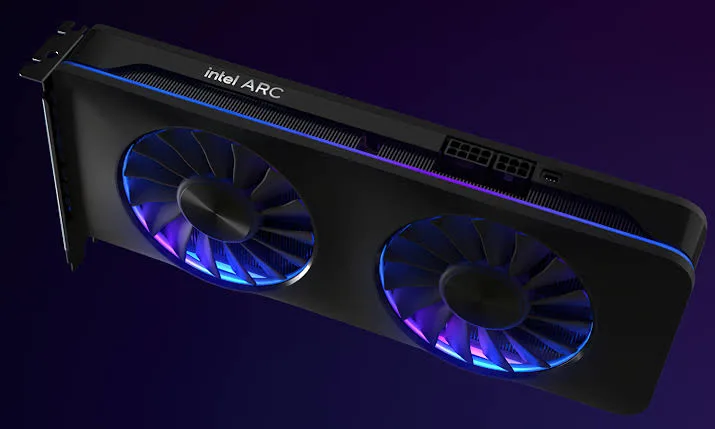

Intel Arc Series

The Intel Arc series is the upcoming and most anticipated type of Intel discrete graphics card. It is expected to be released in 2022, and it will target the high-end gaming and creative markets. It will compete with the likes of Nvidia GeForce RTX and AMD Radeon RX series, and it will offer impressive performance and features for the most demanding tasks and games.

The Intel Arc series will have several models, each with different specifications and capabilities. The higher the number, the better the performance. For example, the Arc A750 will be faster than the Arc A380, and the Arc A770 will be faster than the Arc A750. The Arc A310 will be the entry-level model, while the Arc A770 will be the flagship model.

Some of the notable models in the Intel Arc series are:

• The Arc A310, will be the budget-friendly model for casual gamers and content creators. It will have 128 EUs, a base frequency of 1800 MHz, and a boost frequency of up to 2000 MHz. It will have 4 GB of GDDR6 memory and a bandwidth of 128 GB/s. It will use the PCIe 4.0 interface and have a TDP of 75 W.
• The Arc A380 will be the mid-range model for mainstream gamers and content creators. It will have 256 EUs, a base frequency of 1900 MHz, and a boost frequency of up to 2100 MHz. It will have 8 GB of GDDR6 memory and a bandwidth of 256 GB/s. It will use the PCIe 4.0 interface and have a TDP of 150 W.
• The Arc A750 will be the high-end model for enthusiast gamers and content creators. It will have 512 EUs, a base frequency of 2000 MHz, and a boost frequency of up to 2200 MHz. It will have 16 GB of GDDR6 memory and a bandwidth of 512 GB/s. It will use the PCIe 4.0 interface and have a TDP of 225 W.
• The Arc A770 will be the flagship model for hardcore gamers and content creators. It will have 1024 EUs, a base frequency of 2100 MHz, and a boost frequency of up to 2300 MHz. It will have 16 GB of GDDR6X memory and a bandwidth of 1024 GB/s. It will use the PCIe 4.0 interface and have a TDP of 300 W.

All the models in the Intel Arc series will support DirectX 12 Ultimate and Vulkan 1.2 and will have some advanced features like ray tracing, variable rate shading, mesh shading, sampler feedback, and adaptive sync. They will also support Intel's Deep Link technology, which will allow them to work together with Intel's integrated graphics for better performance and efficiency.

Conclusion

Intel's graphics cards have come a long way since the first Intel 82720 Graphics Display Controller in 1982. Today, Intel offers a wide range of graphics solutions, from the integrated ones that come with your CPU, to the discrete ones that you can buy separately. Whether you need a graphics card for basic tasks, everyday tasks, or demanding tasks, Intel has something for you.

If you are looking for a graphics card that offers decent performance and efficiency for everyday tasks and gaming, you might want to consider the Intel HD series or the Intel UHD series. They are usually found in mainstream laptops and desktops, and they can handle some light gaming and creative work.

If you are looking for a graphics card that offers high performance and efficiency for demanding tasks and gaming, you might want to consider the Intel Iris Xe series or the Intel Arc series. They are usually found in premium laptops and desktops, and they can handle some heavy gaming and creative work. They also support some cutting-edge features like ray tracing, variable rate shading, and adaptive sync.

Whatever your needs and preferences are, Intel has a graphics card for you. You can check out the official website of Intel for more information and details about their graphics cards, and compare them with the competition. You can also read some reviews and benchmarks from reputable sources, and see how they perform in real-world scenarios.

We hope this article has helped you learn more about Intel's graphics cards, and how they can enhance your computing experience. Thank you for reading, and happy gaming and creating!
